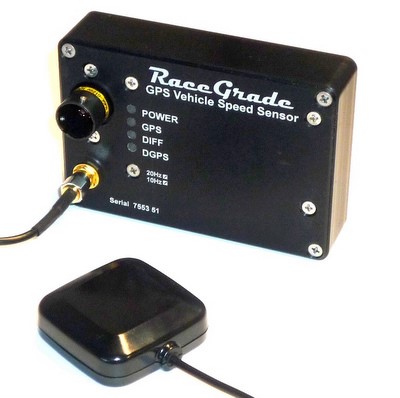

GPS Sensor

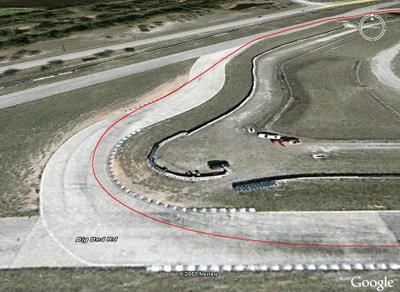

This high accuracy differential GPS sensor is capable of providing actual driving line analysis. GPS Satilite count may be used to estimate accuracy as this GPS receiver does not accept multi-path signals. It updates at a true 10 or 20 Hz rate.

Features:
  • 12-channel GPS engine
  • Update rate of 10 Hz or optional 20 Hz
  • Horizontal accuracy < 0.7 meter at 95%
  • RS-232 serial output at 57600 baud serial,    other rates available upon request
  • Optional CAN output available
  • Digital output pulse for speed
  • NMEA message output types GGA and RMC, others available upon request
  • Supply Voltage: 6 to 18 Vdc
  • Weight: 160 grams w/o antenna
  • Dimensions: 3.95 x 2.7 x 0.9 inches
Part # M TEL FGR2


Manual:
     RG_MAN-0001   GPS Manual

Spec Sheets:
     RG_SPEC-0001   RaceGrade GPS
