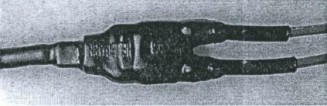

Current Sensor

This hall effect in-line current sensor will report the actual current flowing through its wires. It requires a 5v supply and outputs a 0-5v variable voltage based on the current. Senses current flow in both directly, and is available in many different ranges .
•  Output:  0-5v, 2.5v @ 0 Amps
•  Supply:  5 Vdc
•  Range:  +/- 150 Amps
•  Wire Size:   8 AWG red
